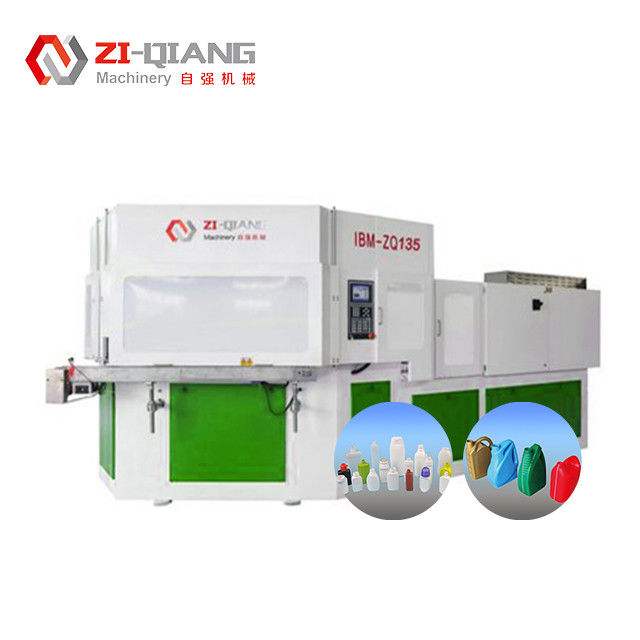

ZQ135 Fully Automatic Injection Blow Molding Machine 5ml-1L

Marka Adı:	Zi-Qiang
Model Numarası:	ZQ135
Adedi:	1
fiyat:	150000USD
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

CHINA

Sertifika:

Clamping System:

Toggle Type Clamping System

Product Height:

≤175 Mm

Electronic Rulers:

Italy Gefran

Mould Material:

S136, P20, 4Cr13

Head Heating Power:

Hollow Part Volume:

5ml to 1L

Injection Pressure:

100-200 MPa

Production Capacity:

As Per Samples

Applications:

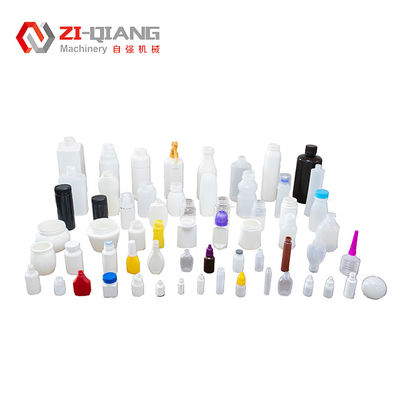

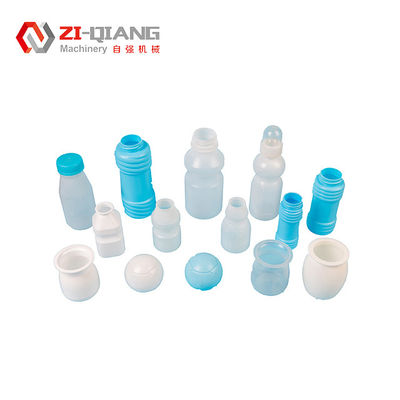

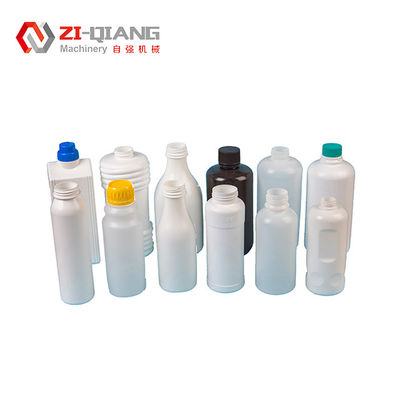

5ml to 1L small plastic bottles

Warranty:

12 Months

Control System:

Screw L/D Ratio:

Heating Power:

10-20 kW

Cooling System:

Water Cooling

Station:

Three In One

Supply Ability:

15 SET/MONTH

Vurgulamak:

fully automatic injection blow molding machine

5ml-1L injection blow molding machine

IBM blow molding machine with warranty

Ürün Tanımı

ZQ 135 High-Efficiency Fully Automatic High-Yield Integrated Injection Blowing Machine

Key Features

Toggle Type Clamping System for secure operation
Precision electronic rulers from Italy Gefran
High-quality mould materials: S136, P20, 4Cr13
PLC control system for reliable automation
Three-in-one station design for efficient production
Water cooling system for optimal temperature control
12-month warranty for peace of mind

Technical Specifications

Injection System

Item	Unit	Specification
Screw Diameter	mm	70
Screw L/D	%	22:1
Injection weight	g	650
Heating power	KW	30
Number of barrel zone		6+N
Injection stroke	mm	200

Clamping System

Item	Unit	Specification
Clamping force of injection	KN	1350
Opening stroke for injection	mm	140
Clamping force of blowing	KN	200
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70

Mould Specifications

Item	Unit	Specification
Max.Platen size(L*W)	mm	1300*500
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	280

Hydraulic System

Item	Unit	Specification
Hydraulic Pressure	Map	14
Motor power	KW	37+37
Dry cycle	S	4
Total Power	KW	95
Operating power	%	52-70

Additional Specifications

Item	Unit	Specification
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	5.522.4
Net weight	Ton	18
