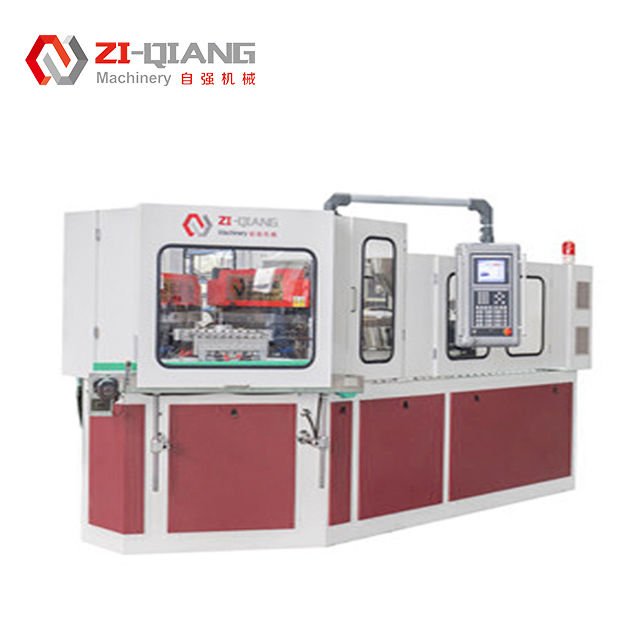

Fully Automatic PP PE Plastic Bottle Injection Blow Molding Machine 5ml-2L

Marka Adı:	ZI-QIANG
Model Numarası:	ZQ60
Adedi:	1
fiyat:	40000USD
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Place of Origin:

CHINA

Sertifika:

Ejector Force:

50-100 kN

Water Flowage:

4M³/h

Cooling System:

Water Cooling

Voltage:

Customized According To Customer Needs

Blow Moulding Type:

Injection Blow Moulding

Applications:

5ml To 2L Small Plastic Bottles

Production Capacity:

As Per Samples

Total Power:

Injection Clamping Force:

1100 KN

Operating Power:

52-70%

Net Weight:

3.8ton

Station:

Three In One

Control System:

Mould Material:

S136, P20, 4Cr13

Suitable Bottle Range:

5ml-2L

Supply Ability:

15 SET/MONTH

Vurgulamak:

fully automatic PP PE bottle molding machine

injection blow molding machine for plastic bottles

5ml-2L plastic bottle molding machine

Ürün Tanımı

1-2000ml PP PE Plastic Bottle Fully Automatic Integrated High-Efficiency Injection and Blowing Machine

Key Features

Three-in-one station design for efficient production
PLC control system for precise operation
Water cooling system for optimal temperature control
Customizable voltage to meet specific requirements

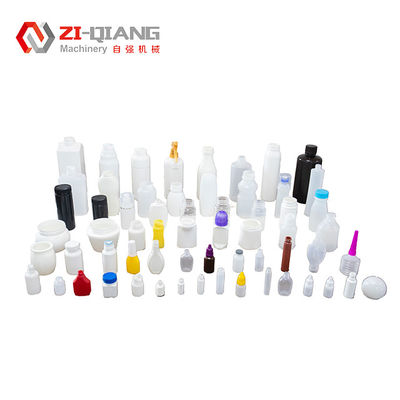

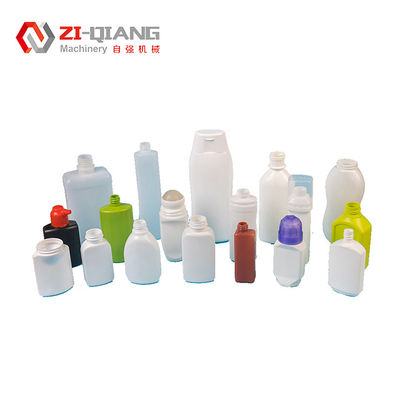

Produces small plastic bottles from 5ml to 2L capacity

Technical Specifications

Attribute	Value
Ejector Force	50-100 kN
Water Flowage	4M³/h
Cooling System	Water Cooling
Voltage	Customized According To Customer Needs
Blow Moulding Type	Injection Blow Moulding
Applications	5ml To 2L Small Plastic Bottles
Total Power	95KW
Injection Clamping Force	1100 KN
Operating Power	52-70%
Net Weight	3.8 ton
Station	Three In One
Control System	PLC
Mould Material	S136, P20, 4Cr13
Suitable Bottle Range	5ml-2L

Detailed Technical Parameters

Injection System

Screw Diameter: 45 mm

Screw L/D: 22:1

Injection weight: 260 g

Heating power: 14 KW

Number of barrel zone: 3+N

Injection stroke: 160 mm

Clamping System

Clamping force of injection: 600 KN

Opening stroke for injection: 140 mm

Clamping force of blowing: 100 KN

Opening stroke for blowing: 140 mm

Lifting height of rotary table: 70 mm

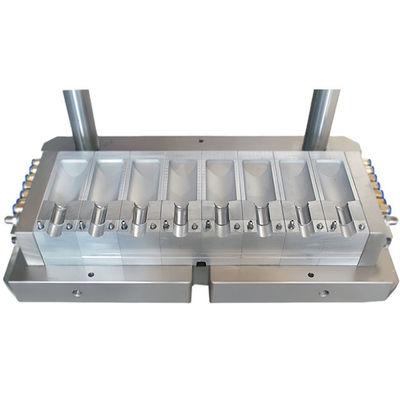

Mould

Max.Platen size(L*W): 600*390 mm

Mold thickness: 240 mm

Dia.of bottle: 120 mm

Bottle height: 220 mm

Suitable bottle height: 1-1000 mm

Stripping stroke: 230 mm

Hydraulic System

Hydraulic Pressure: 14 Map

Motor power: 22 KW

Dry cycle: 4 S

Total Power: 37 KW

Operating power: 52-70%

Other Specifications

Min.Air pressure of compressed air: 0.7-1.2 MPa

Compressed air capacity: 0.7 M³/min

Water flowage: 4 M³/h

Cooling water pressure: 0.3-0.4 MPa

Dimension(L*W*H): 3.5*1.4*1.8 M

Net weight: 5 Ton
